SKU: SKU: 3.867A.773.0
Lingotto Indoor - Grey/Yellow
- Regular price
- £338.93
- Regular price
- £338.93
-
£338.93 - Sale price

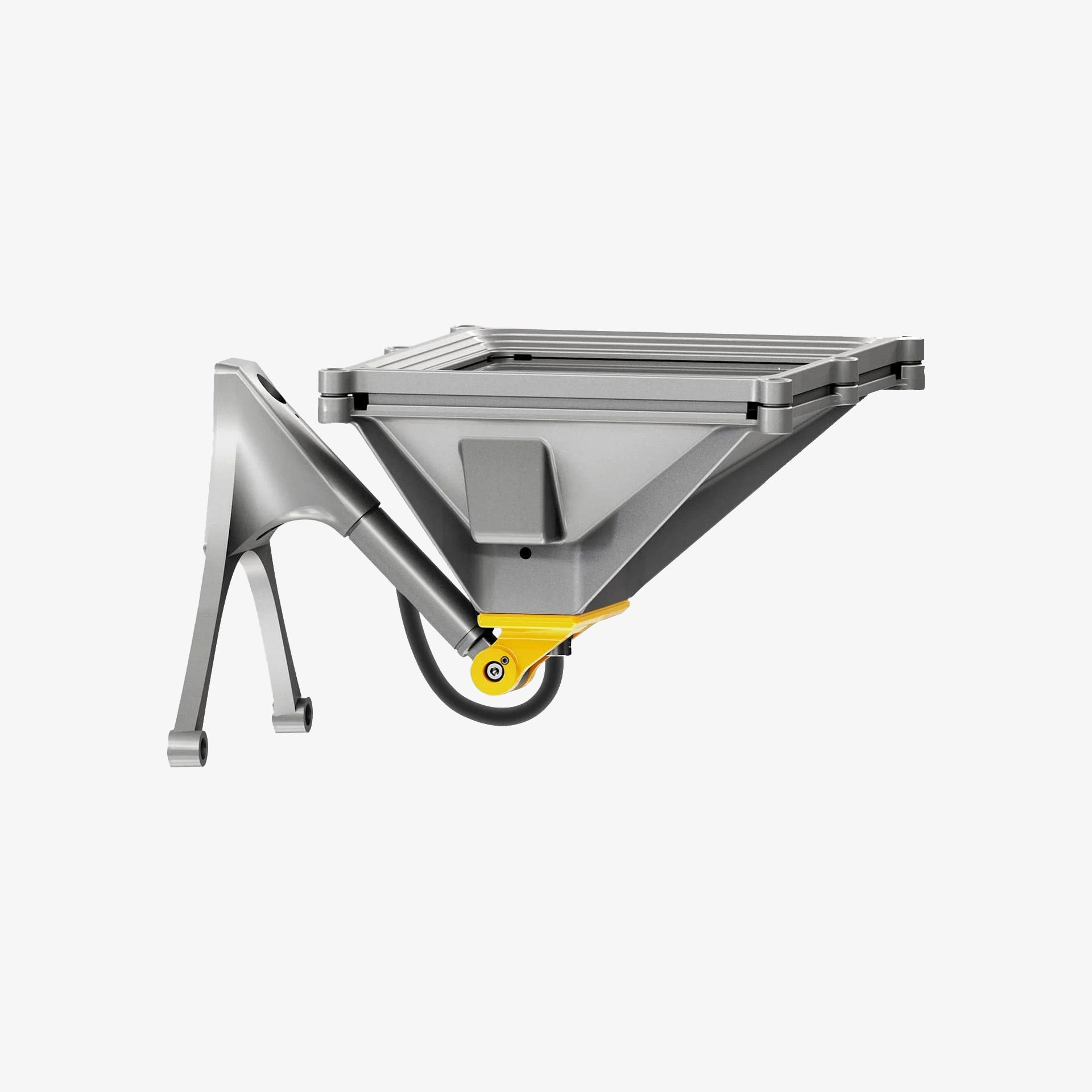

Floodlight designed to use LED lamps and a GL optic. Consisting of an optical assembly, a swivel joint, a glass-holding frame and a fork made of aluminium alloy, subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation and sealing. The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. Transparent, 4mm thick, tempered sodium-calcium closing glass. The gasket is in black silicone. The product includes a Warm White monochrome circuit fitted with 1 reflector with an Opti Beam Reflector. The electronic DALI-2 power supply is integrated in the product and compatible with remote management systems. The frame includes steel retaining cables. The swivel joint allows the luminaire to be adjusted vertically by 180°. All external screws used are made of A2 stainless steel.
Design: Renzo Piano
Dimension
Ø 270x240 mm
Product Weight
3,25
Material
Aluminium
LM
2563
CRI
CRI (minimum) 80 - Rf (Colour Fidelity Index) 84 - Rg (Gamut Index) 95 - DALI-2
W
19,9
Wiring
Product Specifications
Dimension
Ø 270x240 mm
Product Weight
3,25
Material
Aluminium
LM
2563
CRI
CRI (minimum) 80 - Rf (Colour Fidelity Index) 84 - Rg (Gamut Index) 95 - DALI-2
W
19,9
Wiring
